Current location:Home - Products Generator - Diesel Generator

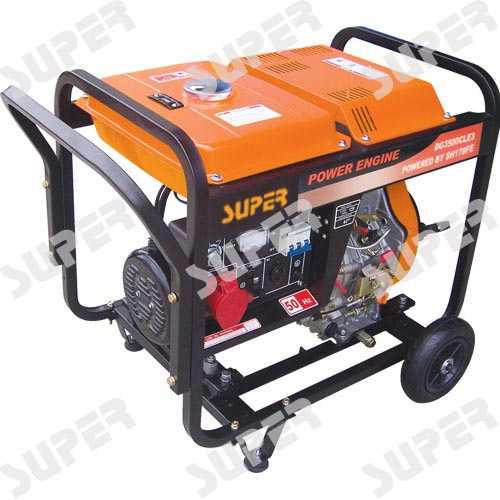

  Diesel Generator 3500LH/E-N Detailed parameter
Rated frequency [Hz] 50 60
Rated voltage [V] 232
Rated current [A] 12.2 12.5/25
Rated output power [KVA] 2.8 3.0
Max output power [KVA] 3.0 3.3
Rated rotation speed [rpm] 3000 3600
DC output 12V8.3A
Power factor [cos] 1
Phase number Single phase
Noise level [dB(A)@7m] 81-83
Overall dimension (LxWxH) [mm ] 700x500x575
Dry weight [kg] 53 recoil 60 electric
Structure type Open-frame type
Excitation mode Self-excitation brushless
Engine model SU178F/E
Engine type Single cylinder, 4-stroke, air-cooled,
direct injection, diesel engine
Displacemen [ml (cu.in)] 296 (18.06)
Compression ratio 20:1
Rated power [KW (Hp)/rpm] 3.7 (5.03)/3000 4.0 (5.44)/3600
Starting system LH:recoil starter E:electric starter
Rotation dircetion (View from flywheel) Clockwise
Fuel 0# (summer) or -10# (winter) light diesel
Lube SAE10W30 (above CC grade)
Low oil pressure alert system With

* Optional:
Three phase/Battery/Hour counter/Remote control
