Current location:Home - Products Tractor - 100~125

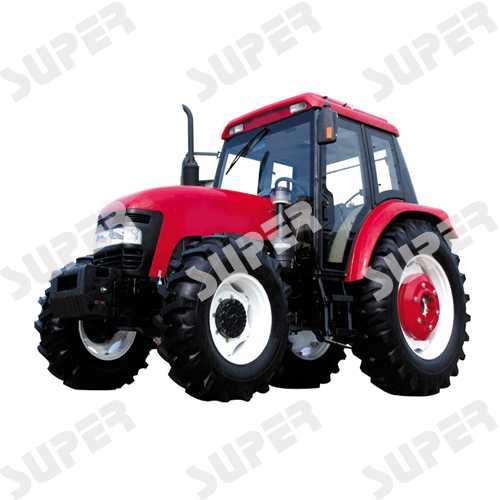

  100~125 1004B Tractor Detailed parameter
Model 1004B  Tractor
Engine Model LR6105T79
Engine Type 6-cylinder, vertical, water-cooled, four-stroke diesel engine
Bore x stroke mm  105X125
Rated Power [KW(HP)] 80.9
Rated  Speed (RPM) 2400
 Fuel Consumption  g/kW·h  ≤248.9
Types front:14.9-24      wheel:16.9-38
Front-wheel Tread(mm) 1808-2148(1912)
Rear-wheel tread (mm) 1664-2268(1664)
Wheelbase mm 2689
Rated traction Force (N) 24000
PTO Speed(rpm)  720
Speed km/h 2.15-28.15
Gearbox   (3+1)×4
Ground Clearance(mm) 470
Overall Dimensions mm 4800×2330×2980
Min.Use Weight (kg) 4500
