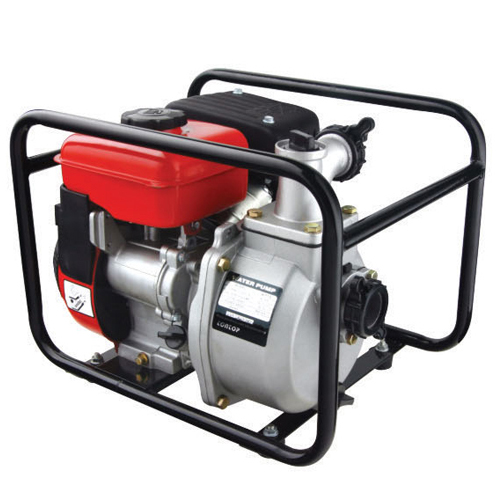

| Model |
WP-15 |
| Discharge port diameter (mm/inch) |
40 (1.5) |
| Suction port diameter(mm/inch) |
40 (1.5) |
| Discharge capacity [m3/h] |
21 |
| Max head lift [m] |
20 |
| Max suction head [m] |
8 |
| Rotation speed [rpm] |
3600 |
| Overall dimension (LxWxH) [mm] |
450x340x335 |
| Dry weight [kg] |
13 |
| Engine model |
SU154 Air-cooled single-cylinder 4-stroke |
| Power [Hp] |
2.4 |
| Rated rotation speed [rpm] |
3600 |
| Fuel tank capacity [L] |
1.6 |
| Fuel consumption [g/KW.h] |
450 |
|
