| Model |

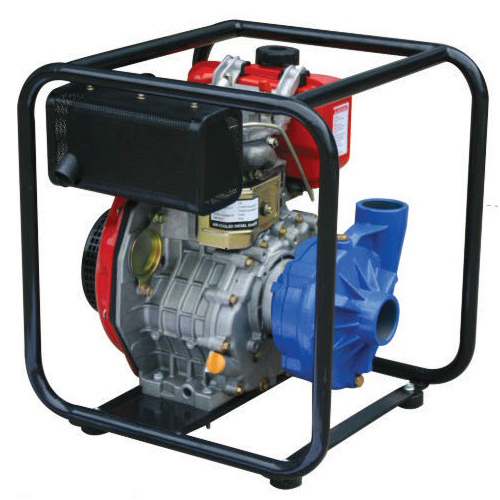

TT-50D(HIGH PRESSURE)
CAST IRON PUMP |
| Discharge port diameter (mm/inch) |
50 (2) |
| Suction port diameter(mm/inch) |
50 (2) |
| Discharge capacity [m3/h] |
20 |
| Max head lift [m] |
60 |
| Max suction head [m] |
8 |
| Rotation speed [rpm] |
3600 |
| Overall dimension (LxWxH) [mm] |
490x455x550 |
| Dry weight [kg] |
63 |
| Engine model |
SU178F |
| Power [Hp] |
6 |
| Rated rotation speed [rpm] |
3600 |
| Displacement [ml] |
296 |
| Starting system |
Recoil starter/Electric starter |
| Fuel tank capacity [L] |
Small tank 3.5 |
| Fuel consumption [g/KW.h] |
283 |
|
