| Model |

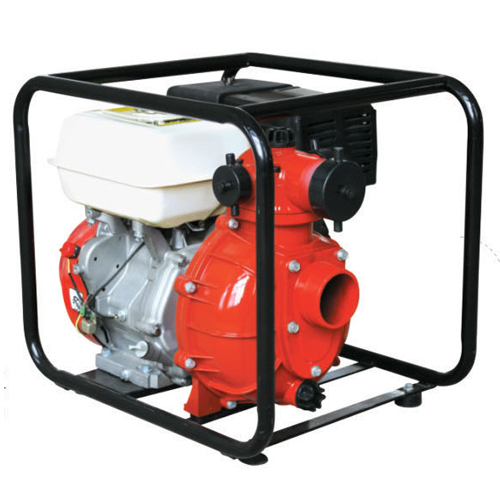

HP-30G(HIGH PRESSURE) |
| Discharge port diameter (mm/inch) |
80 (3) |
| Suction port diameter(mm/inch) |
80 (3) |
| Discharge capacity [m3/h] |
40 |
| Max head lift [m] |
80 |
| Max suction head [m] |
8 |
| Rotation speed [rpm] |
3600 |
| Overall dimension (LxWxH) [mm] |
650x460x530 |
| Dry weight [kg] |
42 |
| Engine model |
SU390 Air-cooled single-cylinder 4-stroke |
| Power [Hp] |
13 |
| Rated rotation speed [rpm] |
3600 |
| Fuel tank capacity [L] |
6.5 |
| Fuel consumption [g/KW.h] |
290 |
|
