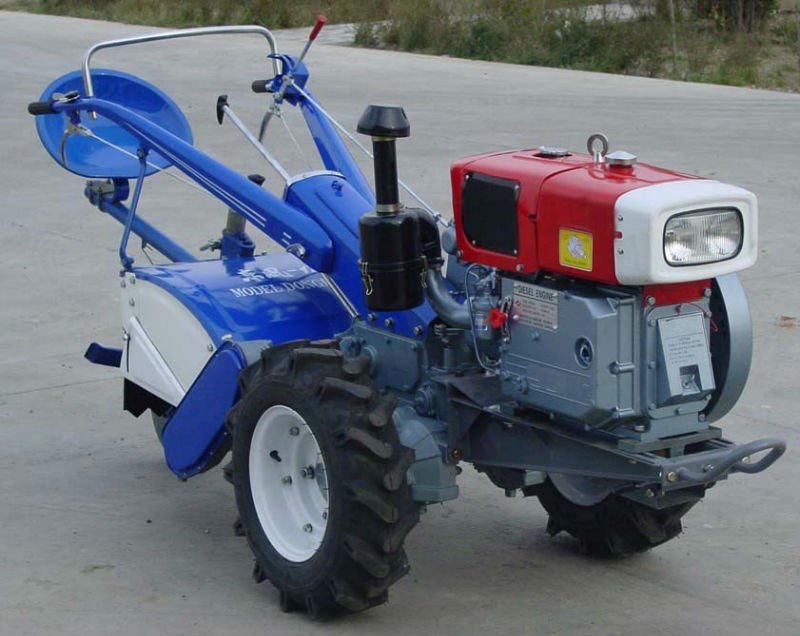

Model of Power Tiller |
Unit |
DF-121 |
DF-151 |
DF-181 |
|
Structure weight |
Without rotavator |
kg |
353 |
363 |
373 |
|
With rotavator |
458 |
468 |
478 |
|
Working weight (with rotavator) |
kg |
493 |
508 |
518 |
|
Turning speed of rototilling shaft |
rpm |
188/300 |
|
Overall dimensions (LxWxH) |
mm |
2680 x 960 x 1250 |
|
Number of blades |
PCS |
18 |
|
Rototilling width |
mm |
600 |
|
Type of tractor |
Single axle, dual-purpose for both traction & drive |
|
Travelling speed |
Forword |
Km/h |
1.4,2.5,4.1,5.3,9.4,15.3 |
|
Reverse |
1.1, 3.8 |
|
Type size |
|
6.00-12 |
|
Wheel track |
mm |
800, 740, 640, 580(normally use 800) |
|
Min. ground clearance |
mm |
185 |
|
Min. turning radius |
m |
0.9( with no rotavator) |
|
Model of engine |
|
S195/S195N |
S1100/S1100N |
ZH1105/ZH1105N |
|
