Current location:Home - Products Agricultural Machineries - Power Tiller

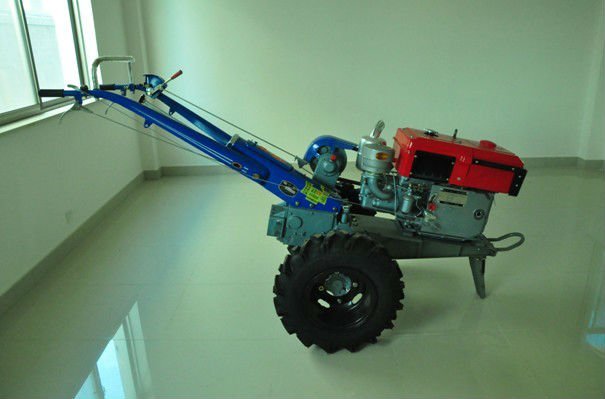

  Power Tiller Power Tiller 1 Detailed parameter

Model of Power Tiller

Unit

YB-18J

YB-20J

Structure weight

Without rotavator

kg

488

503

With rotavator

498

513

Working weight (with rotavator)

kg

533

548

Turning speed of rototilling shaft

rpm

188/300

Overall dimensions (LxWxH)

mm

2680 x 1030 x 1250

Number of blades

PCS

24

Rototilling width

mm

800/900

Type of tractor

Single axle, dual-purpose for both traction & drive

Travelling speed

Forword

Km/h

1.4,2.5,4.1,5.3,9.4,15.3

Reverse

1.1, 3.8

Type size



6.00-12

Wheel track

mm

800, 740, 640, 580(normally use 800)

Min. ground clearance

mm

185

Min. turning radius

m

0.9(with no rotavator)

Model of engine



ZS1105N

ZS1110N

Type of engine



Horizontal 4-stroke

Bore x stroke

mm

105×115

110×115

Total displacement

L

0.9959

1.0931

Compression ratio



17:1

Turing speed of crankshaft

rpm

2200

1-hour rated output

KW/hphp

13.34/18.15

14.7/20

12-hour rated output

KW/hp

12.13/16.5

13.23/18

Specific fuel consumption

g/kw.h

≤246.2

≤244.8

Specific lube oil consumption

g/kw.h

≤2.00

≤1.47

Cooling mode



Condenser (Radiator)

Main farm implements (optional)

100-640 Anti-skid steel wheel Model 100-640
1LS-220 Double-furrow plough Model 1LS-220
1LS-220Y Disk plough Model 1LS-220Y
1LYQ-320 Power driven disk plough Model 1LYQ-320
8Y-80 Sprinkler Model 8Y-80
4GL-130 Swather/reaper Model 4GL-130
7C-1.5 Trailer 7C-1.5 (Standard)
7C-1.5BH Trailer 7C-1.5BH (Hydraulic dumping)
